Hand Wired Germanium Fuzz 2N1304 Transistors

Description

There is a certain type of fuzz that feels less like an effect and more like the amplifier has suddenly started fighting back.

Notes soften around the edges. Chords smear together slightly. The attack becomes less immediate, but somehow more alive.
That is the territory this build lives in.

At the centre of the circuit is a matched pair of vintage 2N1304 germanium transistors. Older low gain devices that produce a softer and more vocal style of fuzz compared to the harder edged silicon units that came later. They compress differently. The notes bloom differently. And most importantly, they react to the guitar volume control in a way that feels connected to your hands rather than simply reducing gain.

Roll the guitar volume back and the circuit cleans up into brittle edge of breakup tones with that familiar glassy top end old germanium fuzzes are known for. Push the guitar back to full volume and it opens up into thick sustaining fuzz with a loose, almost vocal character underneath the note.

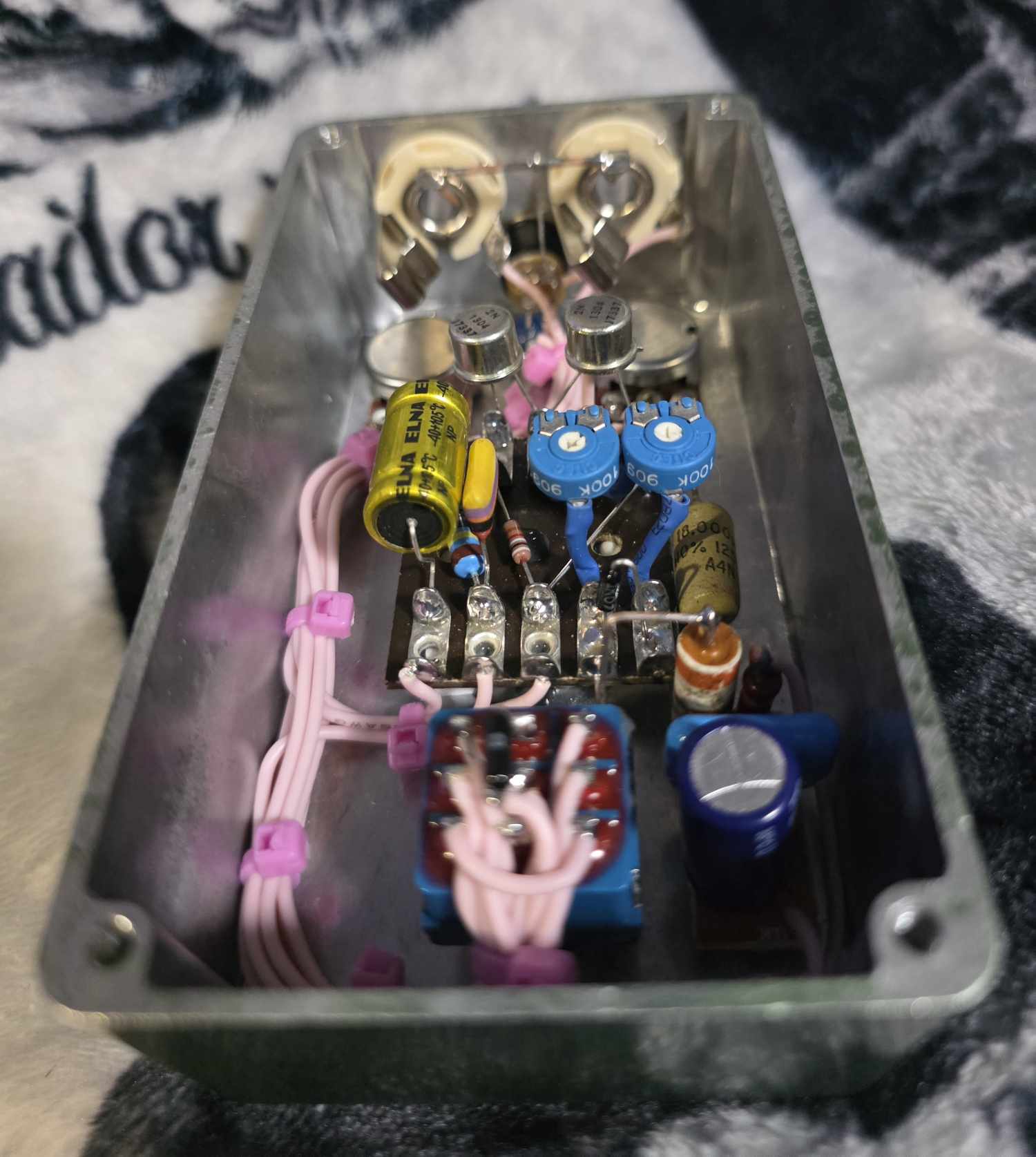

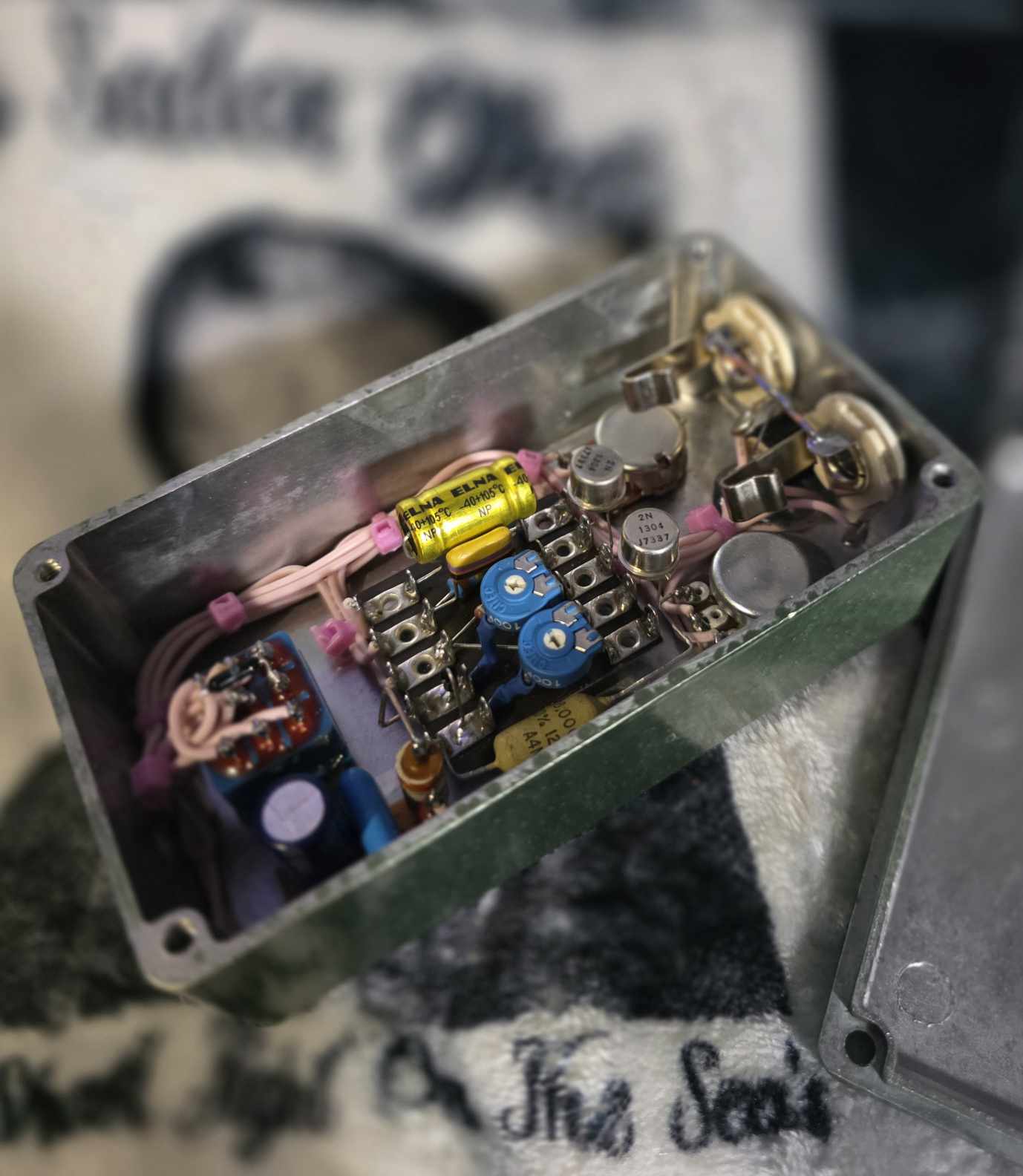

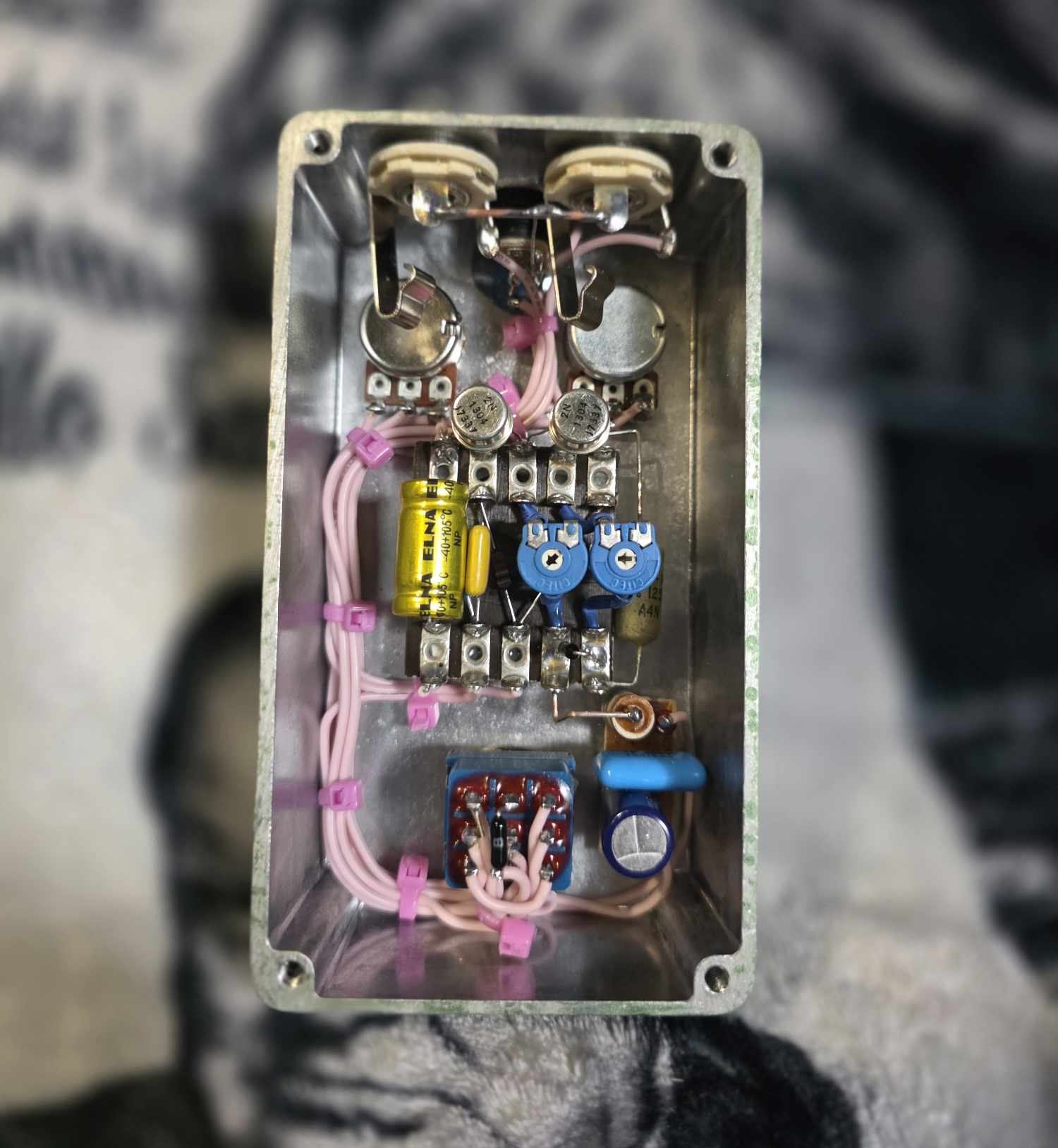

This particular Abbey Road Fuzz is hand wired on tagboard using a mixture of modern and vintage components, built slowly and deliberately in the traditional way rather than around a PCB. Inside you will find carefully dressed wiring, old school construction methods, and the sort of layout that makes servicing and long term reliability straightforward.

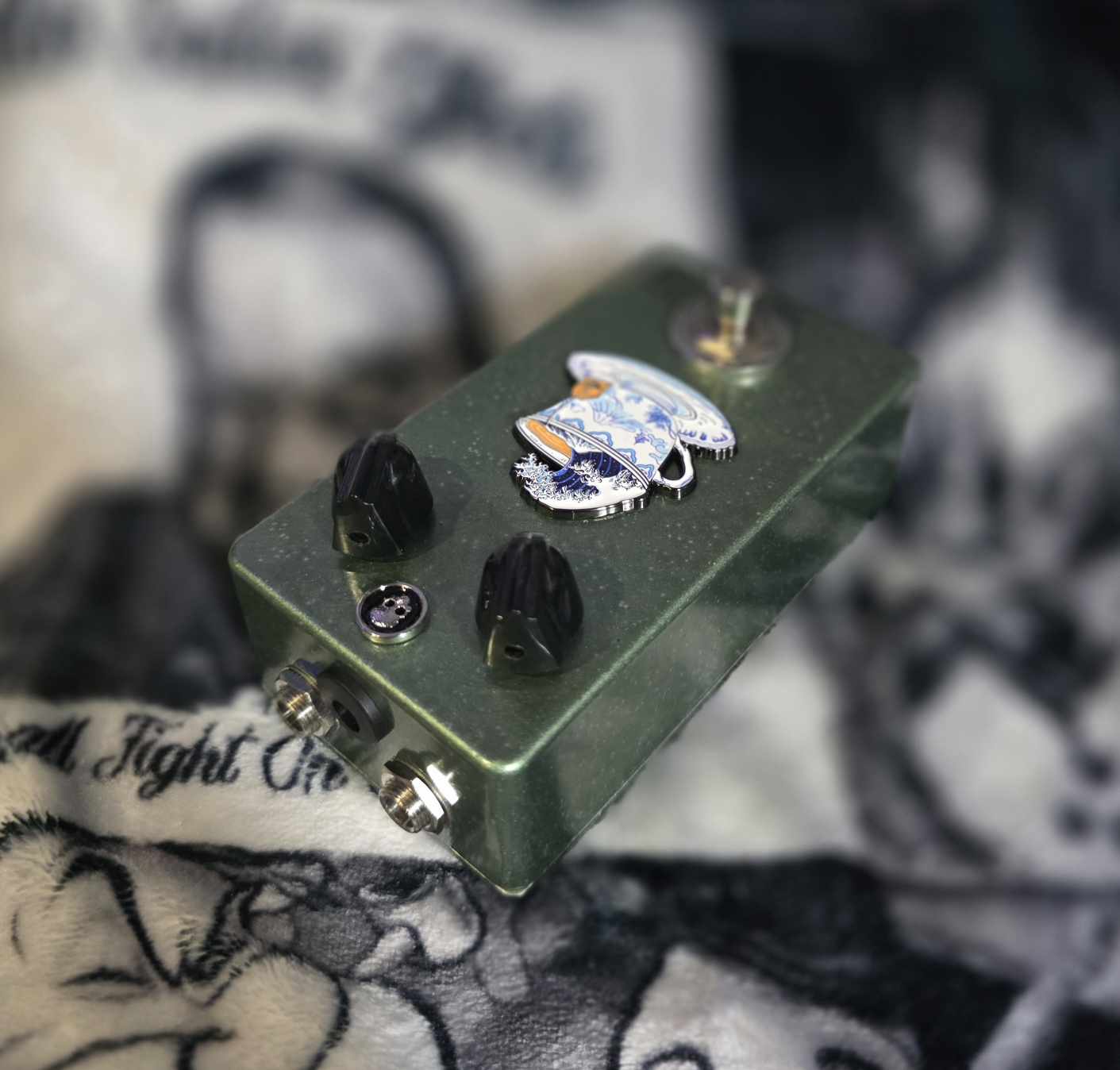

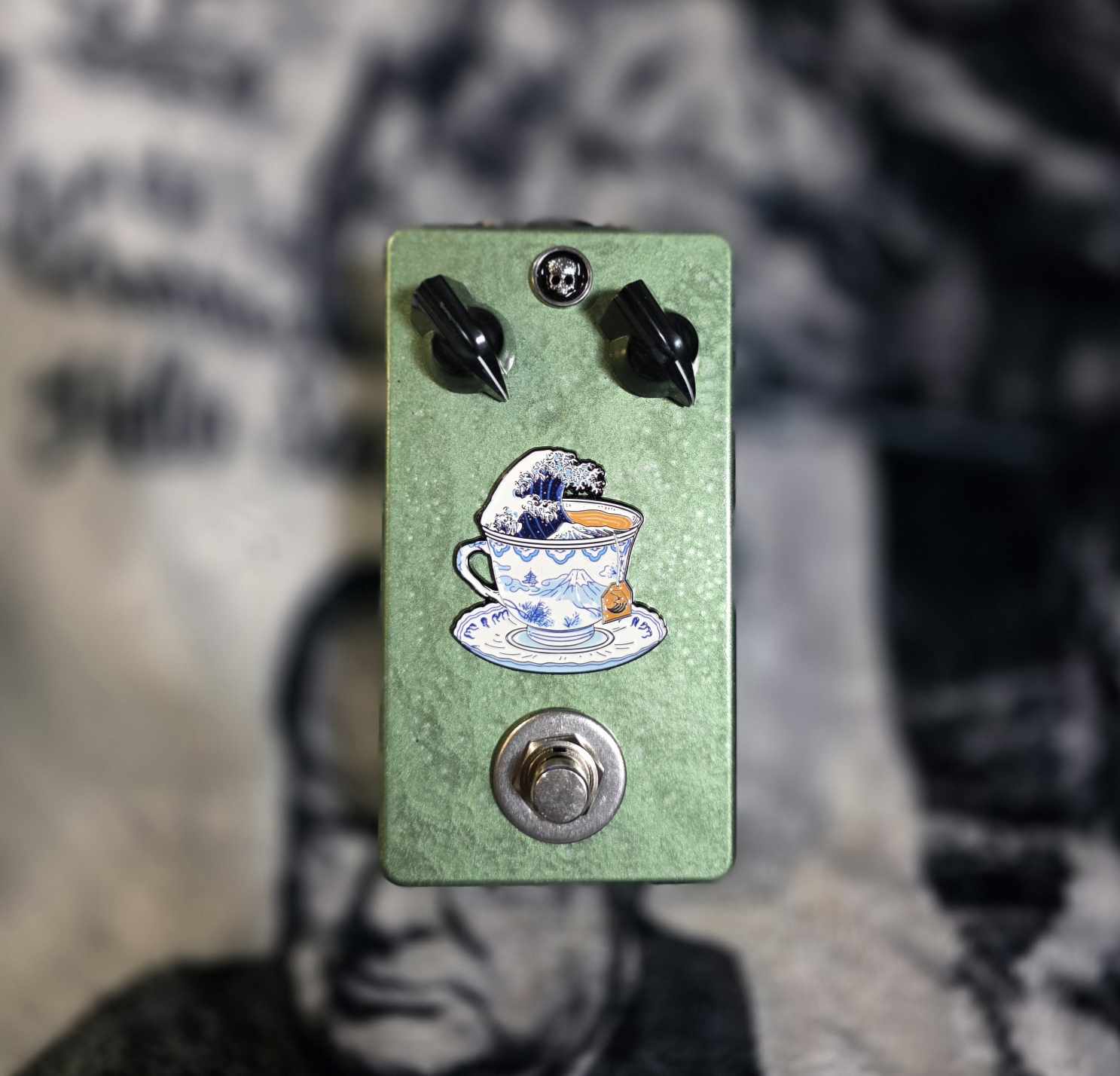

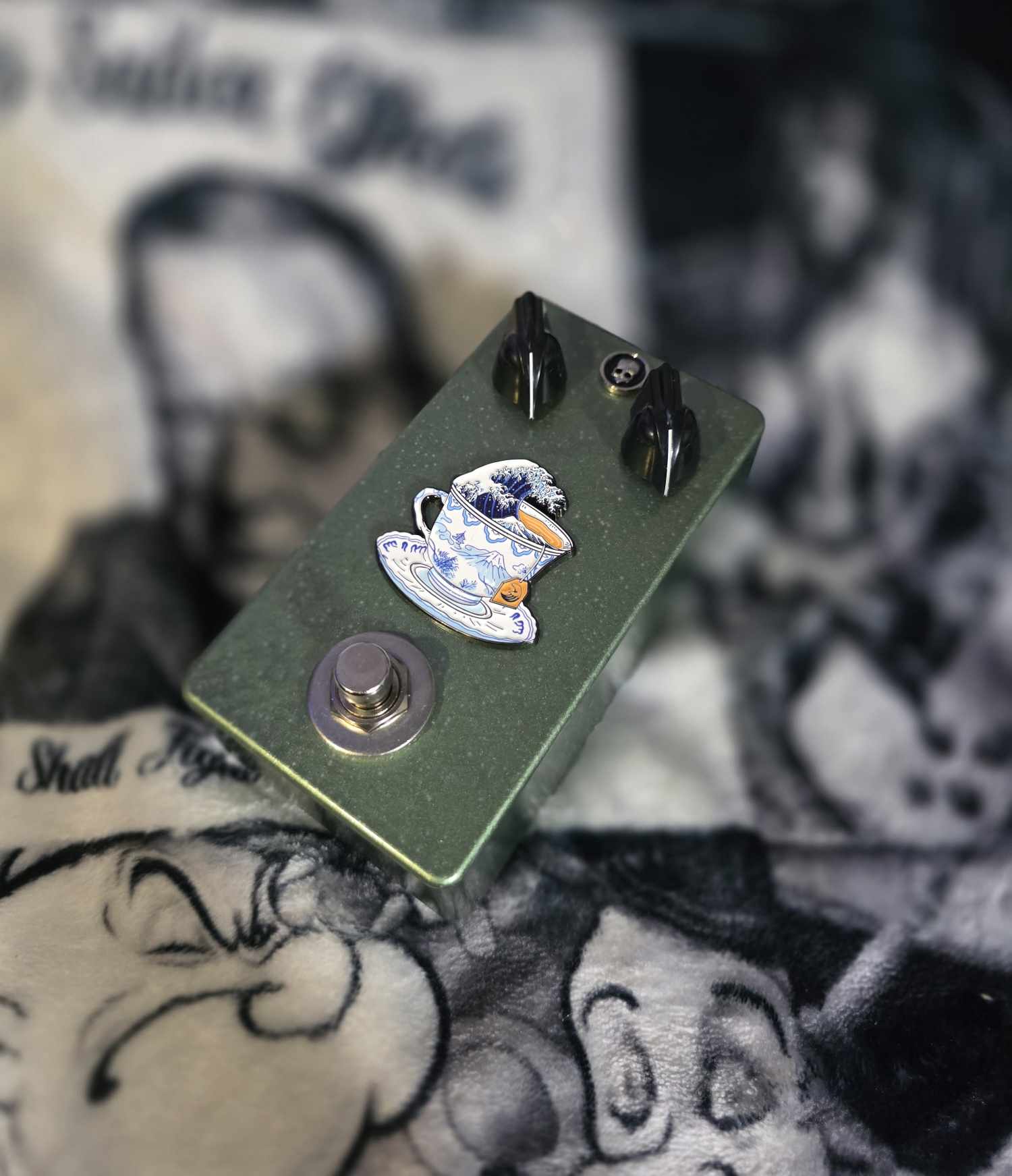

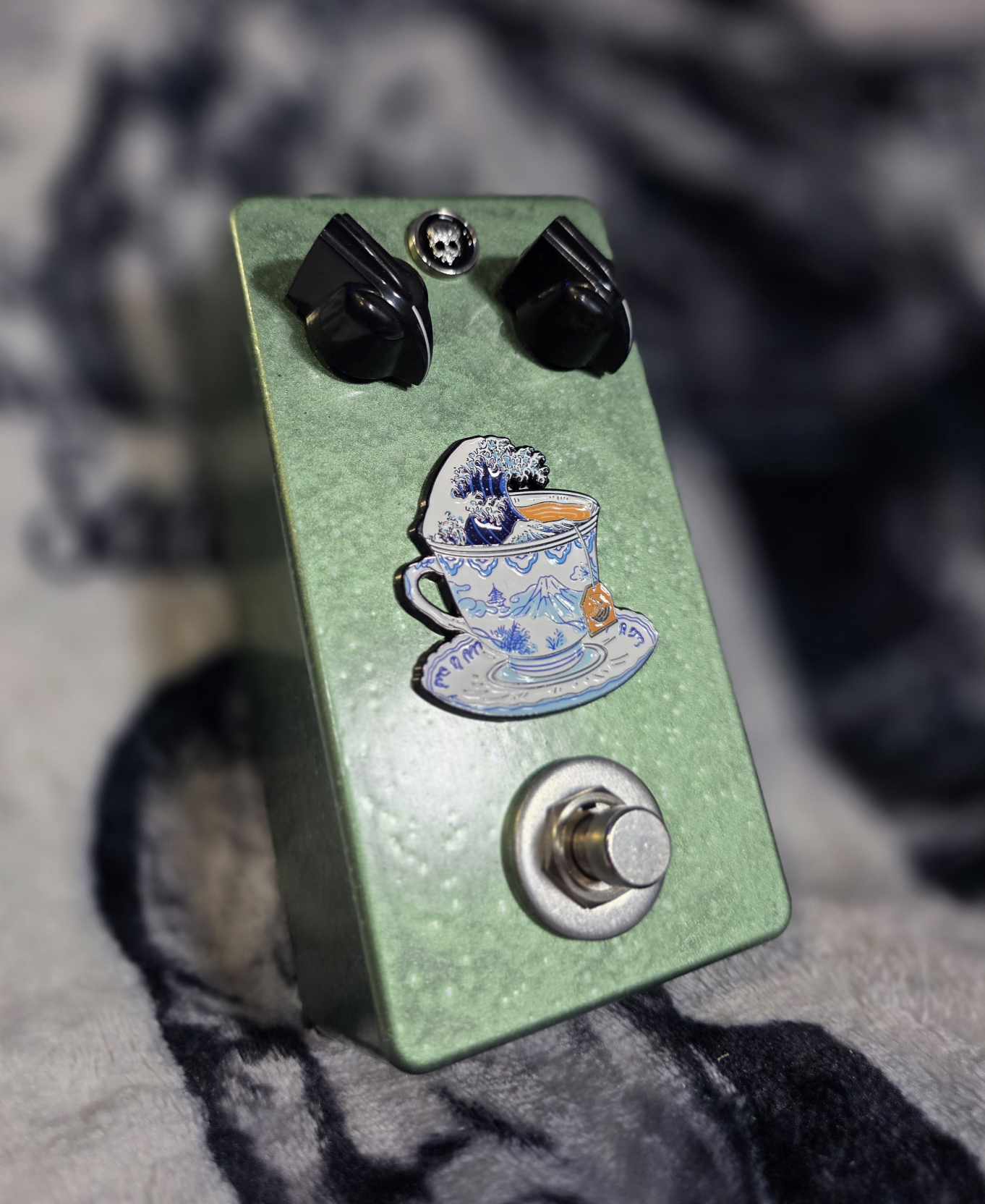

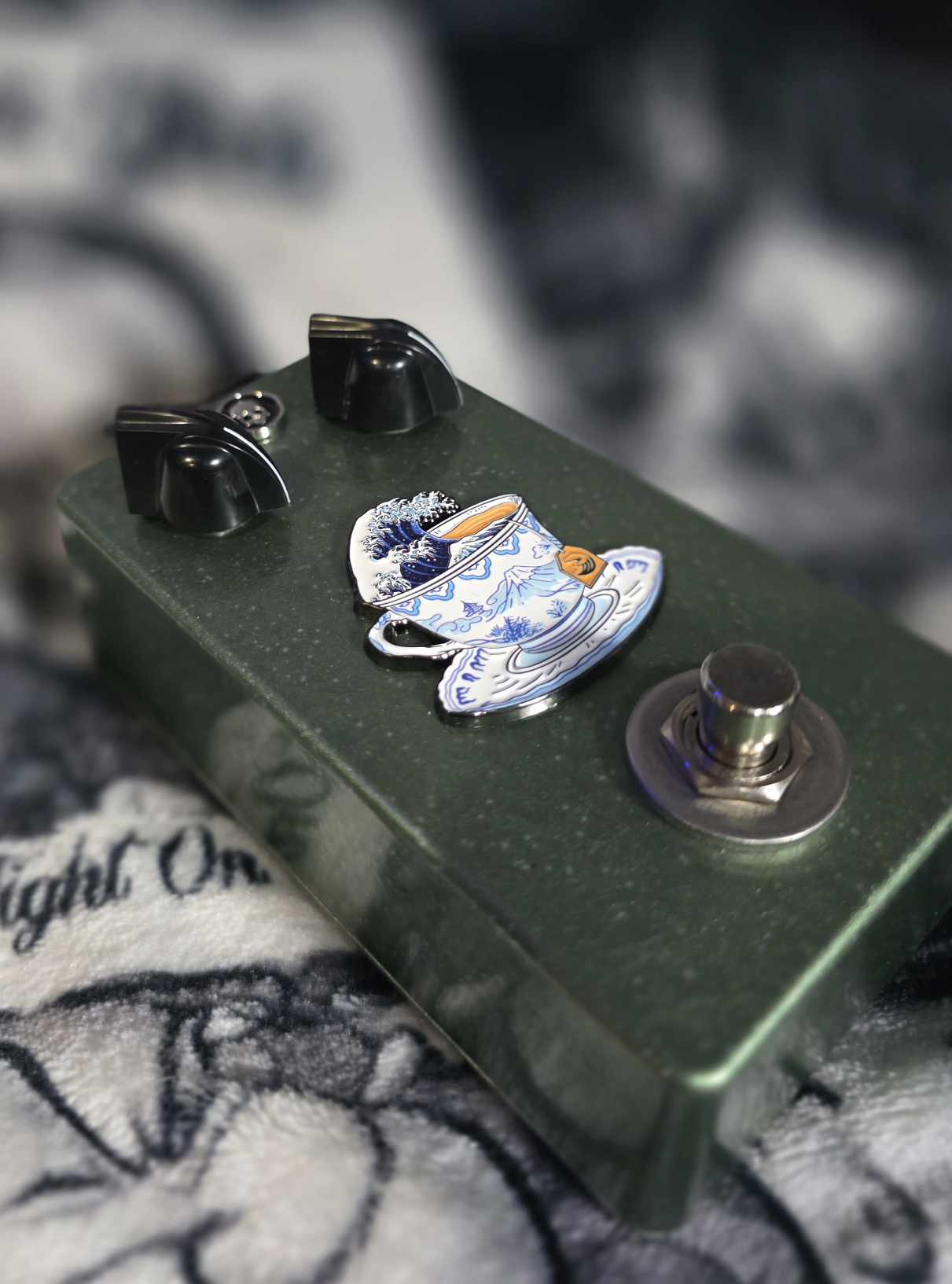

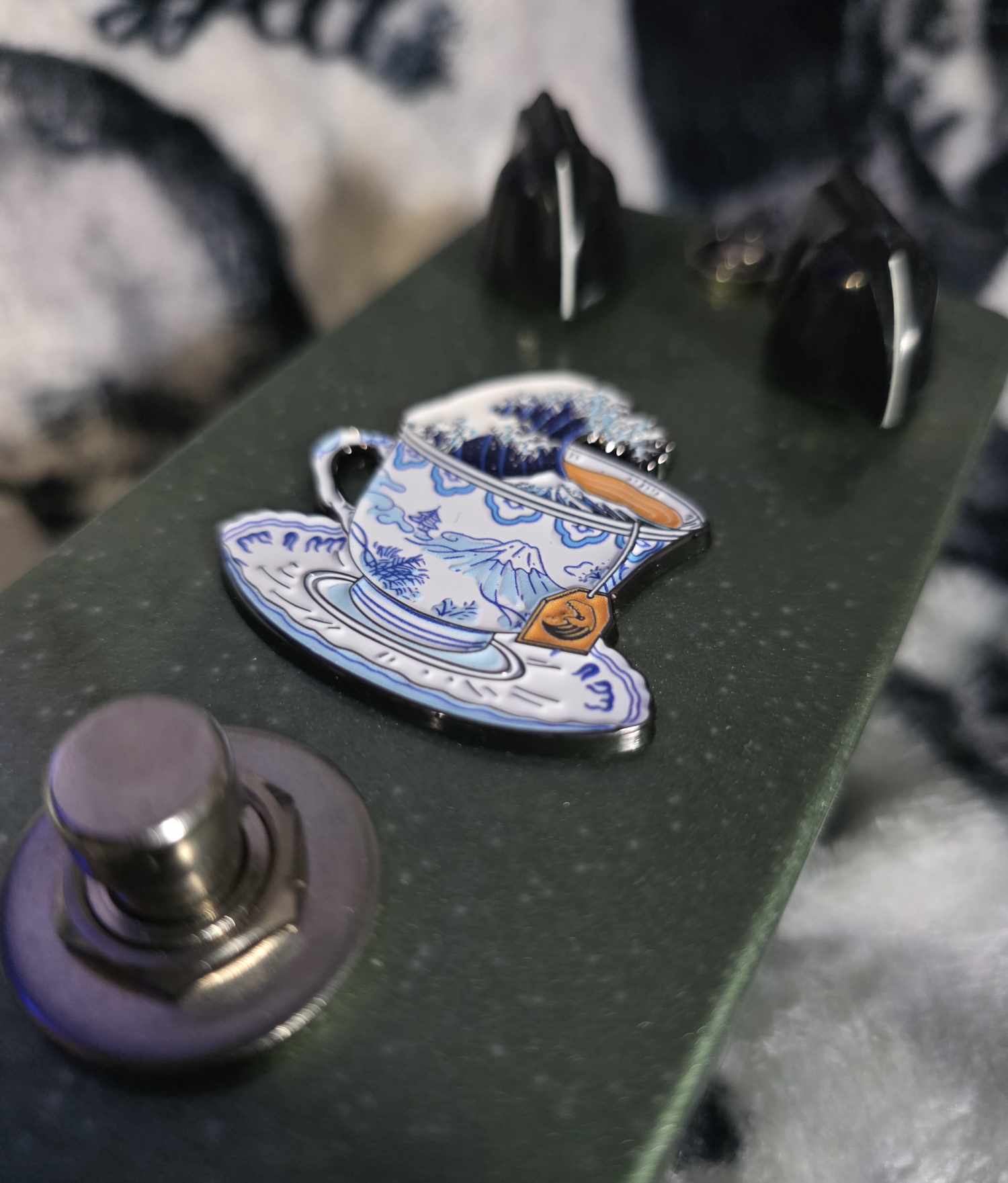

The enclosure is finished in green hammered paint with artwork inspired by the famous Japanese storm and wave imagery, reimagined here as a storm trapped inside a teacup. It gives the pedal an odd balance of calm and chaos which suits the circuit rather well.

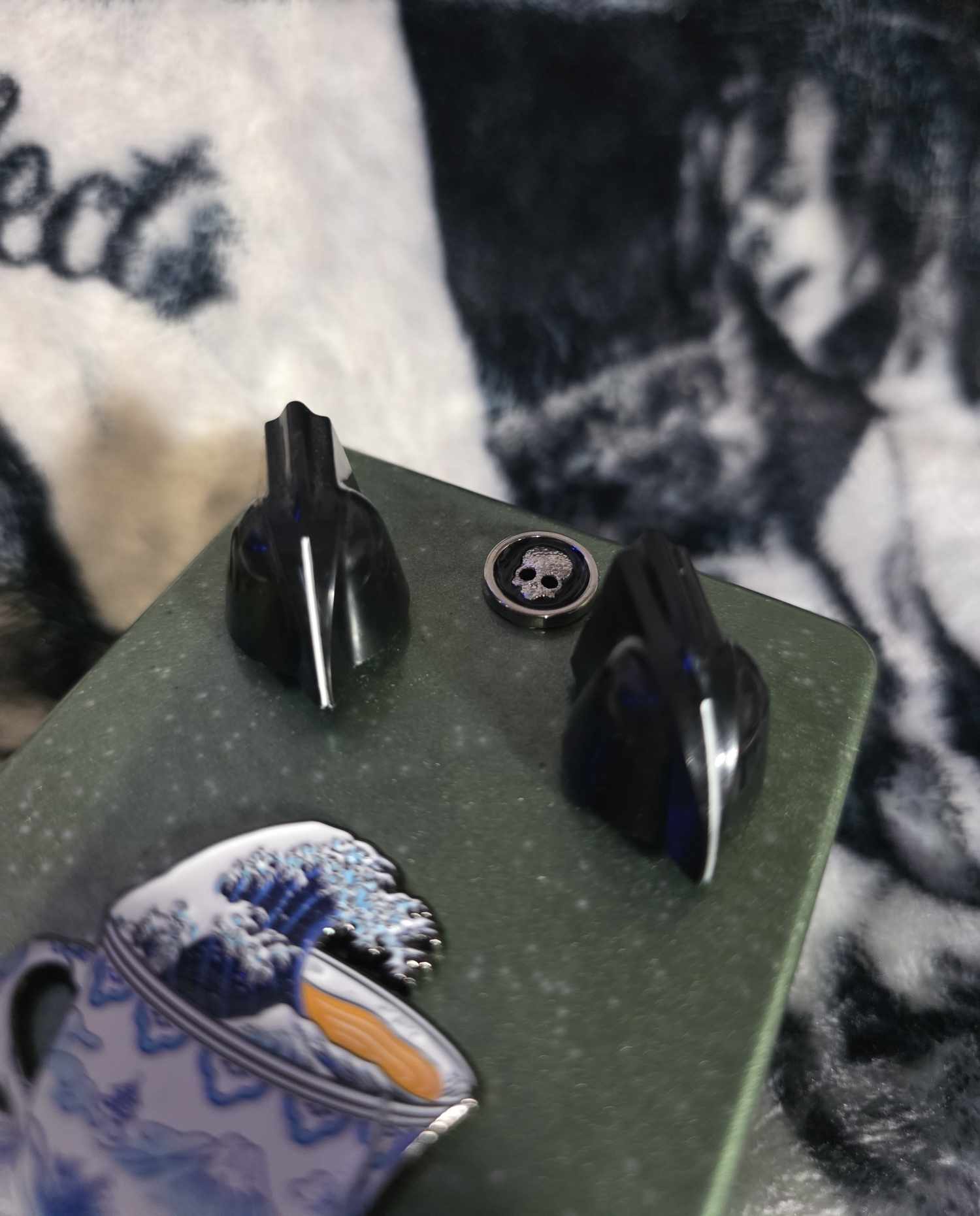

Above the controls sits a small skull emblem whose eyes illuminate when the pedal is engaged. Slightly unnecessary perhaps, but so are most of the best things in old guitar gear.

Tonally this sits closer to the softer British and early American fuzz sounds of the late 60s. Less aggressive than a silicon fuzz. More texture. More sag. More movement under the fingers. Into a cooking valve amp it moves between articulate cleanup tones and thick sustaining lead sounds just from the guitar controls alone.

Unlike many vintage germanium fuzzes, this runs happily from a standard 9v centre negative power supply like most modern pedals, so it will sit straight onto a normal pedalboard without needing special wiring or reverse polarity arrangements.

One off build.

Hand wired.

Built properly.

If you have spent years trying to understand why some fuzz pedals feel alive and others just feel loud, this will probably explain itself within the first few chords.
